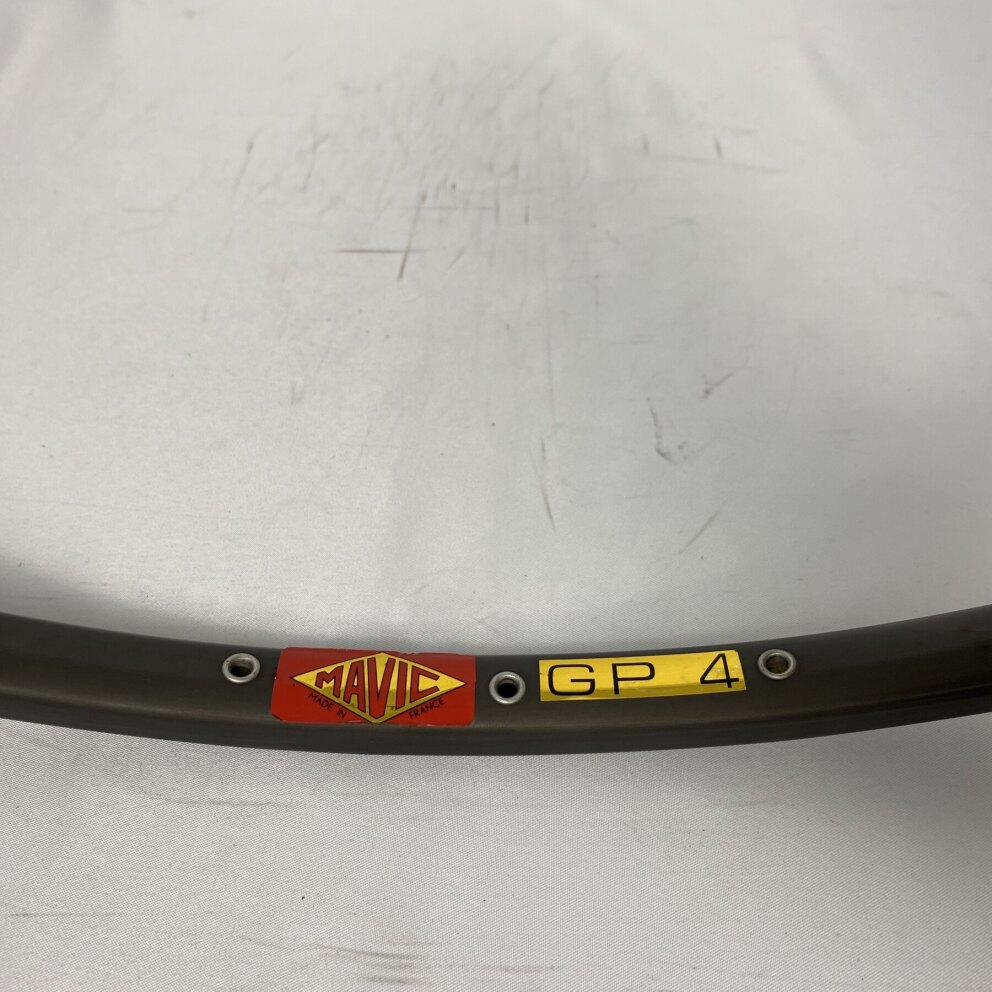

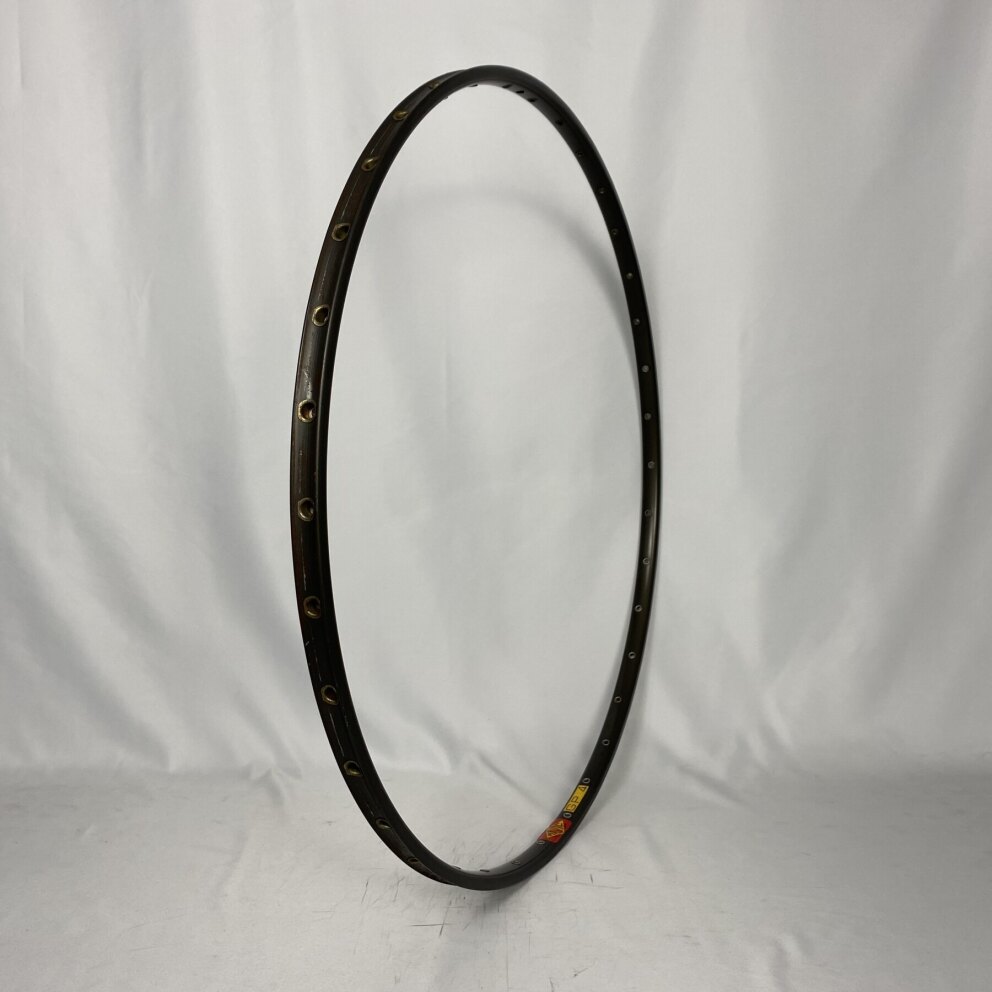

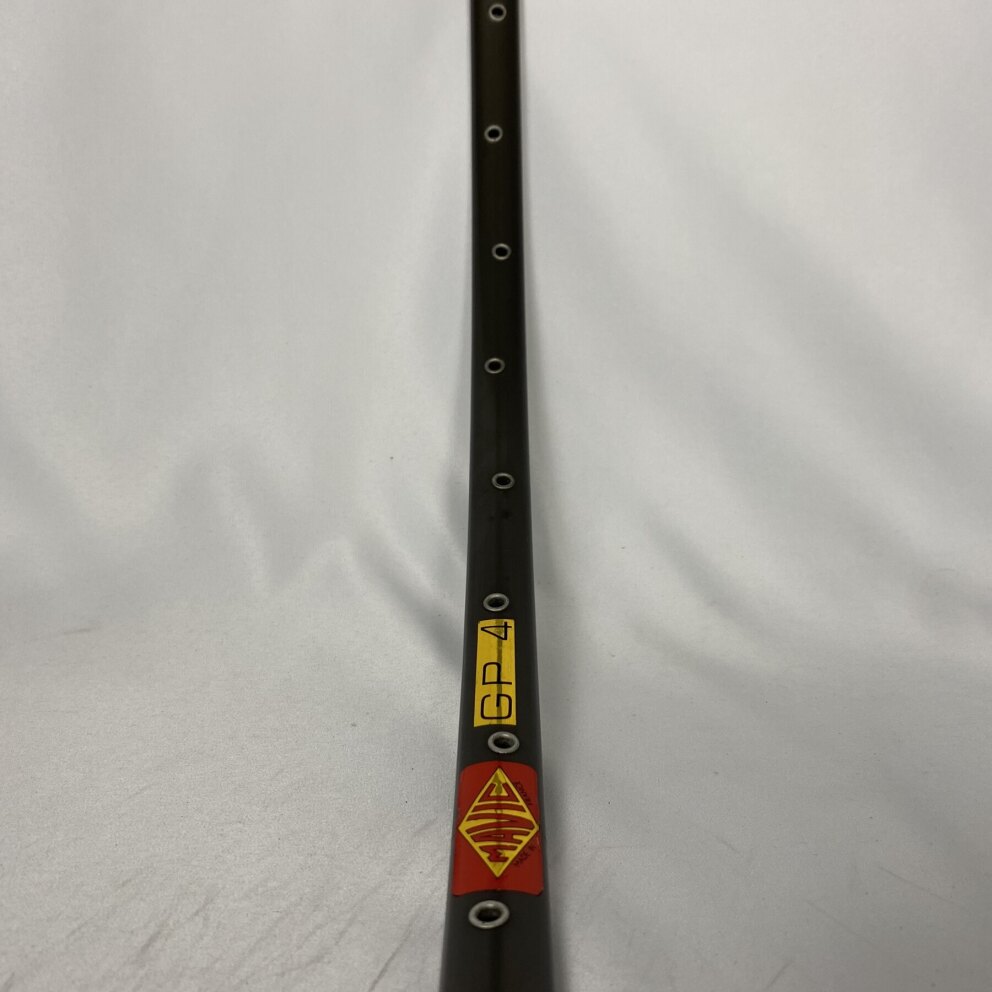

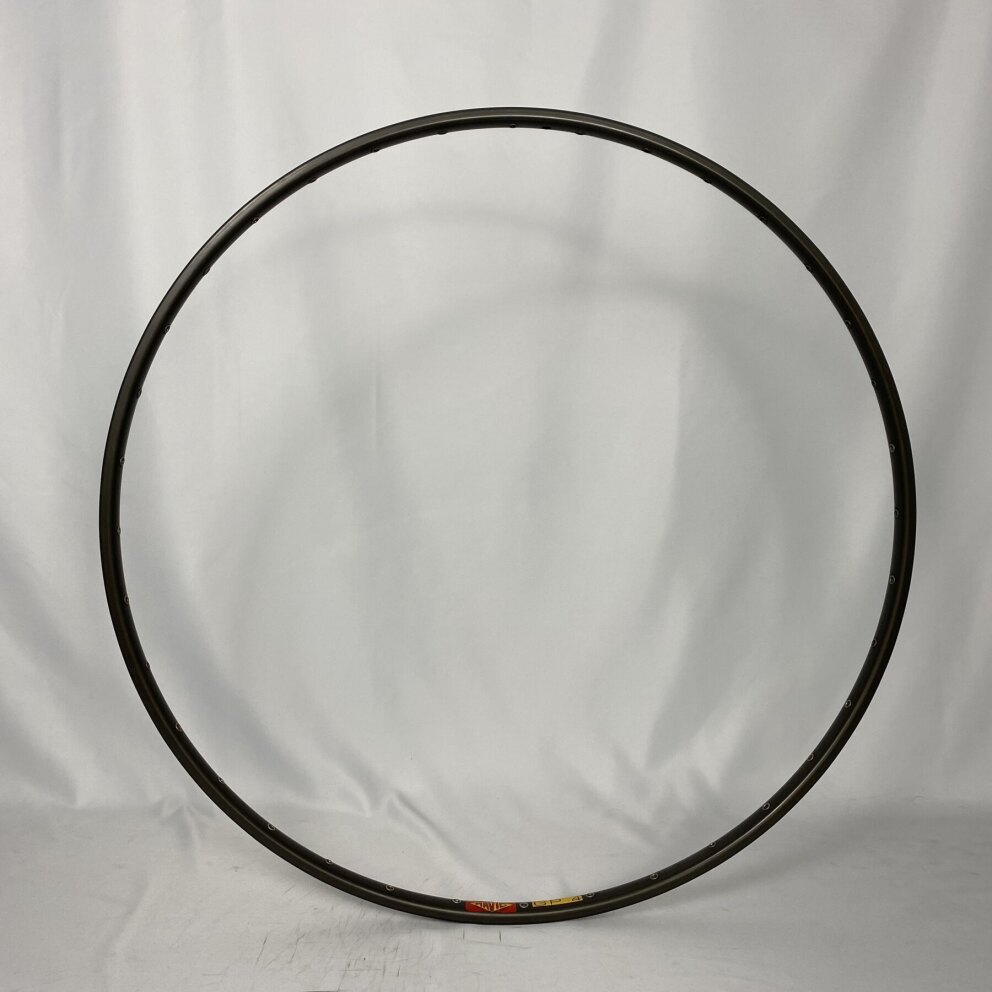

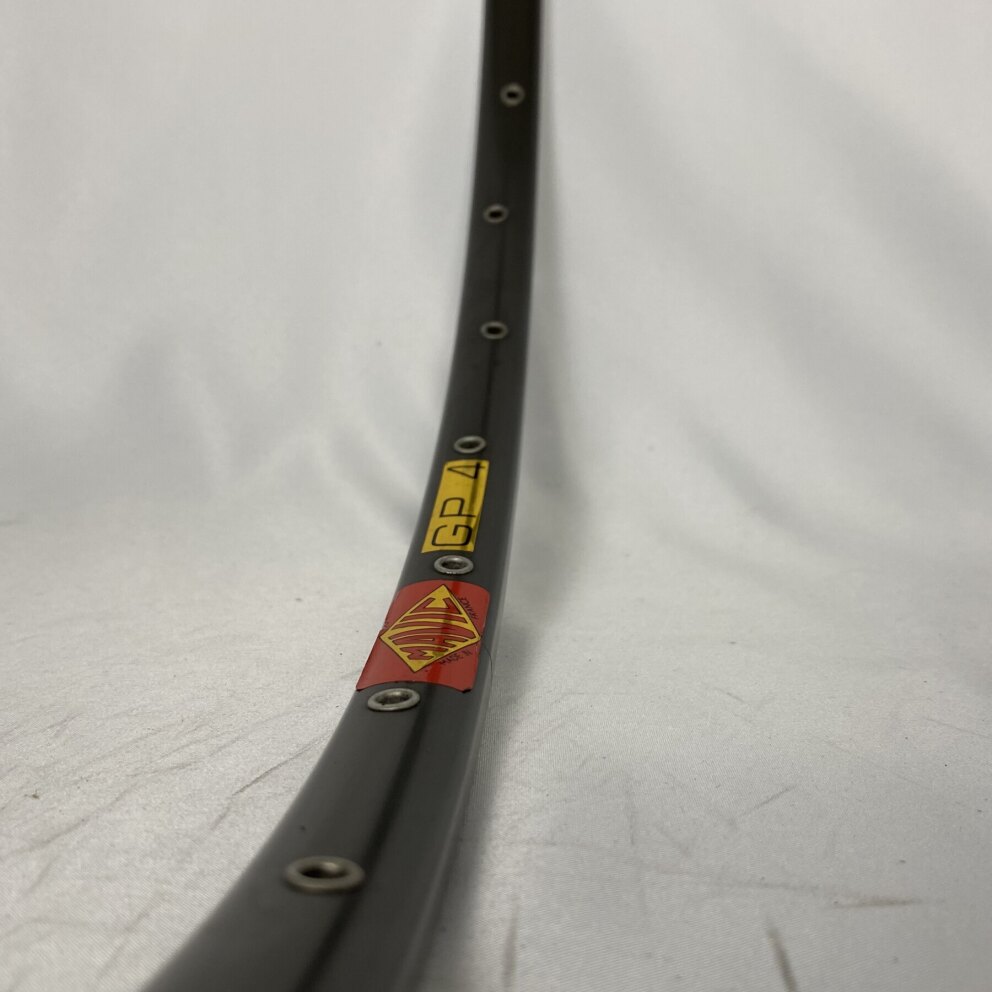

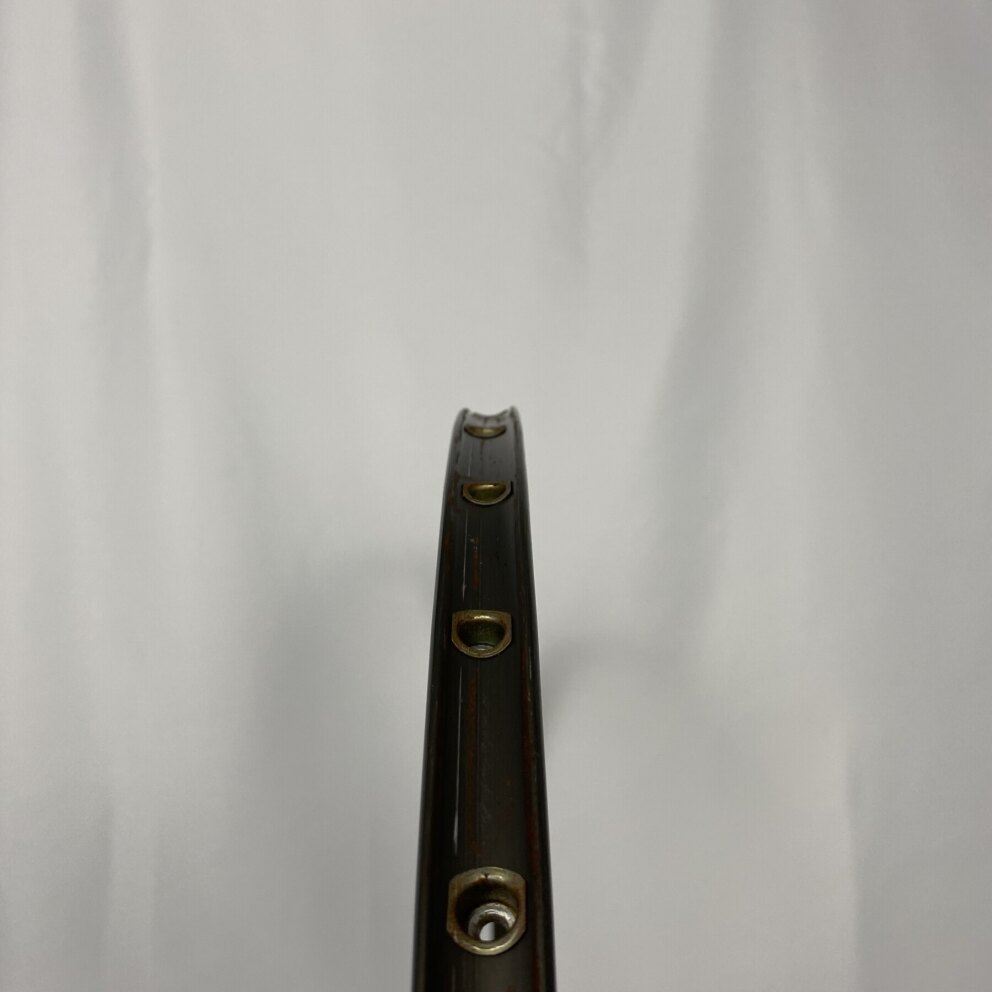

USED / Rim / 622X14 TUBULAR / 36GTS / Double-walled / Double eyelets / Mavic / GP 4 / Gray / Brake surface
TUBULAR
Item number: G90543
€ 49,95
In stock : 2
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | Race , Vintage |
|---|---|
| BSD maat | 622 |
| FIETS Inch maat | 28 |
| Aantal spaken/spaakgaten | 36 |
| Geschikt voor velgrem | Ja |
| Kleur | Grijs |
| Interne breedte van de velg | 13C |
| Merk velg | Mavic |
| Type velg | GP 4 TUBULAR |
| Materiaal van de velg | Aluminium |
| Enkelwandig / Dubbelwandig | Dubbelwandig |
| Gebuste velg | Dubbel gebust |
| Nieuw of gebruikt | Gebruikt |
NOTE: This rim can only be used with a tubular (glued) tire!
Unique, classic vintage bicycle rims!
It can be braked with brake pads, but the braking surface is not ground, so the brake pads will and may squeak (for that true vintage feel).
Rim Specifications:
Brand: Mavic
Type: GP 4
Color: Gray
Size (Inches/MM): 622X14 TUBULAR
External Width (MM): 20
Internal Width (MM): 14
Average Weight (GR): 416
Material: Aluminum
Single-Walled / Double-Walled: Double-walled
Single eyelets / Double eyelets: Double eyelets
Number of Spoke Holes: 36GTS
Spoke Nipple Size: 14G
Braking Surface Available: Yes
Data for using the Sapim Spoke Length Calculator:
Internal Rim Diameter (MM *Not ERD*): 606
Rim Thickness (MM): 2
Number of Spokes in the Wheel: 36
Number of crossovers on the gear side: Optional
Number of crossovers on the left side: Optional
Link to spoke length calculation: https://www.sapim.be/spoke-calculator
